Professional Manufacturer of Pipe End Forming Machine
Welcome to Bendtech Engineers, India’s leading Pipe End Forming Machine Manufacturer, Supplier and Exporter. Our advanced machines are made for precision and efficiency in the shaping and forming of pipe ends.
Manufactured to consistently improve your production capabilities, our Pipe End Forming Machines provide reliable use in a variety of applications across industries such as automotive, HVAC, and manufacturing.
As a respected Pipe End Forming Machine supplier, we understand the importance of accuracy in your business. With our advanced technology and sturdy build, you can have excellent quality pipe end formation by precise dimension meeting the required specification.
The product line also offers the advantage of a broad range of options in the size of the pipes as well as in the materials. Our Pipe End Forming Machines cater for small-scale workshops and giant industrial facilities.
We are a Tube End Forming Machine Manufacturer in India, offering practical solutions for shaping and modifying the ends of metal tubes. These machines are designed to perform operations such as expanding, reducing, flaring and forming tube ends according to specific component requirements. They help manufacturers prepare tubes for joining, fitting installation and further fabrication processes.
Our Tube End Forming Machines are suitable for different industrial applications where properly shaped tube ends are important for assembly and product functionality. These machines are built to high standards to ensure safe, accurate operation. They eliminate the need for labour intensive forming methods and make repetitive forming tasks easier. These machines can be set up to work with the different tube types, shapes, sizes and forming needs.
| Categories | Pipe End-Forming Machine |
|---|---|
| Brand | BendTech Engineers (Brand Name:- BTE) |
| Model | BTE-PFM |
| Condition | New |
| Raw Material | Pipe |
| Material / Metal Processed | carbon steel, stainless steel, copper, aluminium, galvanized, etc. |
| Power | Electrical |
| Automation | Automatic |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | By Remote Box |
| FOB port | Mundra Port(Gujarat) , Nahva sheva Port(Maharastra) |
Main Specification
- NC Control Unit: Easy Operation and Maintenance
- Suitable for the shrinking of various metal pipes with different material and different shape
- Equipped with emergency stop device. Both manual and automatic operations are available
- Shrinking stroke 100mm. The max. work piece length is 450mm, with no minimum work piece length

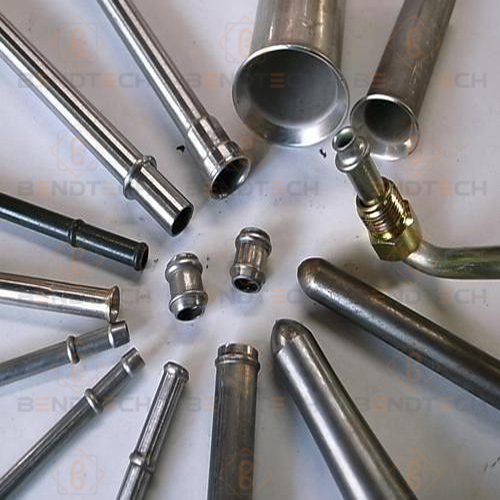

- Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow. The design of the tooling varies with workpiece and customers’ requirements
Key Features of Pipe End Forming Machine
- NC control unit for easy operation
- Automatic and manual operating modes
- Suitable for different pipe materials
- 100 mm forming stroke for end shaping
- Remote box operation for convenient control
Applications of Pipe End Forming Machine
- Automotive Exhaust Pipe Manufacturing
- HVAC Pipe End Forming Applications
- Industrial Tube Component Production
- Stainless Steel Pipe Fabrication
- Copper and Aluminium Tube Processing
| Type | SG-40 | SG-60 | SG-80 |
| Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 |
| Max processing length(mm) | 110 | 130 | 150 |
| Oil pressure(Mpa) | 14 | 14 | 14 |
| Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
| Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 |
| Weight(kg) | 600 | 950 | 1600 |
Frequently Asked Question(FAQs)
A Pipe End Forming Machine is used to change the shape of a pipe end into a required profile. It can create different end forms for joining, fitting, assembly, or further manufacturing operations.
The machine can process various metal pipes, including carbon steel, stainless steel, copper, aluminium, and galvanized pipes, depending on the selected machine and tooling.
Different tooling arrangements can produce profiles such as convex, concave, sectional, flat, square, V-shaped, open-elbow, and flat-elbow forms. The tooling can be selected according to the workpiece design.
Yes, different models are available for different tube capacities. The suitable model can be selected according to pipe diameter, wall thickness, processing length, material, and required end shape.
Yes, the tooling can be designed according to the customer’s workpiece and required end profile. This makes the machine suitable for both standard production and application-specific pipe forming requirements.
