India's #1 Hydraulic Section Bending Machine
The hydraulic section bending machine is made up from the elements which claims long run use and corrosion free. The key features of the Hydraulic Section Bending machine is the robust design and the convenience in the usage which hold firm avoidance to damage and strong impacts along with the noise-free and vibration-free.

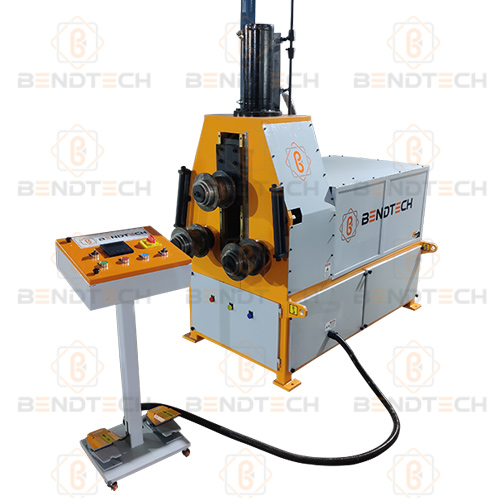

A Hydraulic Pyramid Type Pre-Pinch Three Roller Machine combines mechanical and hydraulic operations to ensure fast, clean, and unique bending. In this pre-pinch configuration, the two bottom rollers stay constant and rotate in clockwise and counterclockwise guidelines via a mechanical drive, while the upper roller is hydraulically operated through a remote manipulate system.
The HTRPBM-Series is designed to address an extensive range of substances and profiles, inclusive of flat iron, angle iron, T and U-shaped sections, square and square pipes, round tubes, and different customised profiles. It additionally functions as a Hydraulic Section Bending Machine, presenting brilliant flexibility across applications.
We specialize in custom die production, allowing this machine to bend profiles made of slight metallic, chrome steel, aluminium, copper, and more. The device is prepared with superior automation and far-off control functionality, along with robust safety capabilities to ensure clean, safe, and particularly green operation.
| Categories | Hydraulic Three Roller Pipe Bending Machine |
|---|---|
| Brand | BendTech Engineers (Brand Name:- BTE) |
| Model | BTE-HTRPBM |
| Condition | New |
| Raw Material | Round Pipe,C-Channel,Angle,T-Section,Square & Rectangular Pipe,Flats. |
| Material / Metal Processed | carbon steel, stainless steel, copper, aluminium, galvanized, etc. |
| Power | Electrical |
| Automation | Automatic |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | Remote Box Operated |
| FOB port | Mundra Port(Gujarat) , Nahva sheva Port(Maharastra) |
Key Features of Hydraulic Section Bending Machine
- Hydraulically controlled.
- Optional rollers for choice.
- Gears Milled with full material.
- Rollers are special steel material hardened and grounded.
- Handles pipes, angles, channels and flat bars
Applications of Hydraulic Section Bending Machine
- Steel Structure Component Fabrication
- Curved Pipe and Tube Production
- Machine Base and Frame Manufacturing
- Custom Metal Framework Production
- Structural Profile Processing
| Hydraulic Section Bending Machine | ||||||
| Sr No. | Details | Specification | Specification | Specification | ||
| 1 | Model | BTE-3HTRPBM | BTE-5HTRPBM | BTE-7.5HTRPBM | ||
| 2. | Version | Pyramid Type, Hydraulic | Pyramid Type, Hydraulic | Pyramid Type, Hydraulic | ||
| 3. | Type | Pre- Pinch ,Vertical | Pre- Pinch ,Vertical | Pre- Pinch ,Vertical | ||
| 4. | Drive | Motorised – Electrical | Motorised – Electrical | Motorised – Electrical | ||
| 5. | Max pipe size | Mild Steel & SS:-2” Aluminium & Copper:- 3” | Mild Steel & SS:-3” Aluminium & Copper:- 4” | Mild Steel & SS:-4” | ||
| 6. | Max Pipe Thickness | 1 to 3mm | 1 to 3mm | 1 to 4mm | ||
| 7. | Feed | Manual | Manual | Manual | ||
| 8. | Rolling | Motor Occupied with Gear Box | Motor Occupied with Gear Box | Motor Occupied with Gear Box | ||
| 9. | Motor Specification | Make:- Standard Make | Make:- Standard Make | Make:- Standard Make | ||
| 10. | Motor Power | 3 HP / 2.25 KW | 5HP / 3.70 KW | 7.5HP / 5.6 KW | ||
| 11. | Gear Box Specification | Standard Make | Standard Make | Standard Make | ||
| 12. | Hydraulic Power Pack | 1 HP | 2 HP | 3HP | ||
| 13. | Power Supply | 415V, 3Ph, 50 Hz | 415V, 3Ph, 50 Hz | 415V, 3Ph, 50 Hz | ||
| 14. | Sturdy and Specially Designed Gear Box | Bottom Two Roller Connected with the gear box and driven Through Motor. | Bottom Two Roller Connected with the gear box and driven Through Motor. | Bottom Two Roller Connected with the gear box and driven Through Motor. | ||
| 15. | Pre-Pinch bending | Bottom Two rollers are fixed and top roller will be operated hydraulically moving Up & Down | Bottom Two rollers are fixed and top roller will be operated hydraulically moving Up & Down | Bottom Two rollers are fixed and top roller will be operated hydraulically moving Up & Down | ||
| 16. | Guides (2Nos.) | EN8 Shaft Hardened & Grinded for safe operation and arresting the twist of pipes & Sections. | EN8 Shaft Hardened & Grinded for safe operation and arresting the twist of pipes & Sections. | EN8 Shaft Hardened & Grinded for safe operation and arresting the twist of pipes & Sections. | ||
| 17. | Lubrication | Manual | Manual | Manual | ||
| 18. | Control Panel | Separate Push Button Remote | Separate Push Button Remote | Separate Push Button Remote | ||
| 19. | Electric Panel | All Components Make :- Schneider | All Components Make :- Schneider | All Components Make :- Schneider | ||
Frequently Asked Question(FAQs)
A Hydraulic section bending machine works by feeding a workpiece through a set of rollers, whereby each section is subject to forming pressure driven by the controlled hydraulic motion. The rollers will guide the section through a curve, and the process can be repeated many times to produce the specified radius of curves.
This type of machine can be used to produce curved or rounded profiles on structural and tubular sections including but not limited to:pipes,angle bars,channels, flat bar, I-bars and any other suitable sections. The forming capacity of a section bending machine depends on the specification of sections and machine’s model.
Through controlling the position of rollers and the force for forming, this machine can produce a desired radius. This process could repeated many times so as to obtain the perfectly curved section.
Hydraulic operation reduces physical labor, gives good controllability in forming, and increases working efficiency. This machine is well-suited to fabricating any custom applications, as well as many straight metal pieces into curved pieces especially in cases of repetition work.
