CNC Pipe Bending Machine Manufacturer in Ahmedabad
The parts of the CNC Pipe Bending machine deploy hydraulic valves and integrated circuits to control the bending machine individually which will extend the service life expectancy of the hydraulic parts.
The massive bending machine is equipped with a manually adjusted digital flow regulation valve which is used to control the speed of the bending motion. We are a leading manufacturer and supplier of CNC Pipe Bending Machine in Ahmedabad, Gujarat, India.
We offer the best quality products at the best prices in the market. We produce the best quality products using qualified raw materials and the latest technology.
| Categories | Motorized Pipe Bending Machines |
| Brand | BendTech Engineers (Brand Name:- BTE) |
| Model | BTE-MDBM |
| Condition | New |
| Raw Material | Pipe |
| Material / Metal Processed | carbon steel, stainless steel, copper, aluminium, galvanized, etc. |
| Power | Electrical |
| Automation | Manual |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | By Push button Switches |
| 3 AXIS CNC PIPE BENDING MACHINE | ||||||
| Sr No | Detail | Specification | Specification | Specification | ||
| 1 | Machine Model | BENDTECH-1.5 CNC | BENDTECH- 2 CNC | BENDTECH- 3 CNC | ||
| 2 | Pipe Size Max | 38mm | 50mm | 75 mm | ||
| 3 | Pipe Size Min | 10 mm | 12.5 mm | 12.5 mm | ||
| 4 | Pipe Wall Thickness | 1.2 mm to 2 mm | 1.2 mm to 3 mm | 1.2 mm to 3 mm | ||
| 5 | Bendino Direction | Clockwise | Clockwise | Clockwise | ||
| 6 | Max. Bending Radius | 3.5D | 3.5D | 3.5D | ||
| 7 | Mini Bending Radius | 2 D | 2 D | 2 D | ||
| 8 | Max Bending Angle | 180 Degree | 180 Degree | 180 Degree | ||
| 9 | Bending Accuracy | ±1.5 % | ±1.5 % | ±1.5 % | ||
| 10 | Bendine Speed | 180/14 sec | 180/14 sec | 180/14 sec | ||
| 11 | Mandrill Length | 2800 mm | 2800 mm | 2800 mm | ||
| 12 | Max Hydraulic Pressure | 150 bar | 150 bar | 150bar | ||
| 13 | Operating Voltage | 415v, 50Hz, 3ph | 415v, 50Hz, 3ph | 415v, 50Hz, 3ph | ||
| 14 | Motor Power | 5 Hp | 7.5 Hp | 15 Hp | ||
| 15 | Hydraulic Valves | Make: Yuken | Make: Yuken | Make: Yuken | ||
| 16 | Motor Make | Crompton Greaves | Crompton Greaves | Crompton Greaves | ||
| 17 | Pipe Clamping and Dis-clamping System | Hydraulic | Hydraulic | Hydraulic | ||
| 18 | Pressure Die Booster | Operated Hydraulically | Operated Hydraulically | Operated Hydraulically | ||
| 19 | Oil CoolingSystem | By Water Cooler | By Water Cooler | By Water Cooler | ||
| 20 | Automatic Oil Lubrication System | Yes | Yes | Yes | ||
| 21 | Electronic Parts | Schneider | Schneider | Schneider | ||
| 22 | Control Panel with PLC | Schneider | Schneider | Schneider | ||
| 23 | Linear Guide Ways | HIWIN/ PMI | HIWIN/ PMI | HIWIN/ PMI | ||
| 25 | Rotating Servo (Make:Scheider,Panasoni Delta) | 0.75 KW | 1 KW | 1.5 KW | ||
| 26 | HMI Sere Size | 7′ | 10″ | 10″ | ||
| 27 | One Die Set Providled with Madiine | BendTech | BendTech | BendTech | ||
Key Features of CNC Pipe Bending Machine
- CNC-controlled bending for precise results
- Accurate control of bending angles and positions
- Smooth and consistent pipe forming
- Strong construction for stable performance
- Easy programming for different bending jobs
Applications of CNC Pipe Bending Machine

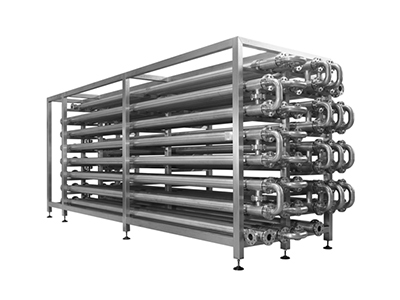

- Boiler and Heat Exchanger Fabrication

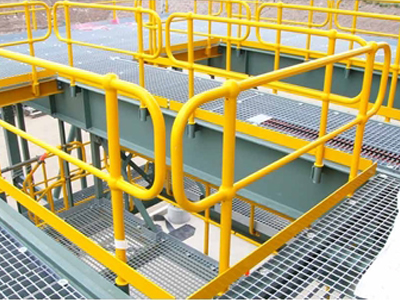

- Construction and Structural Pipe Work

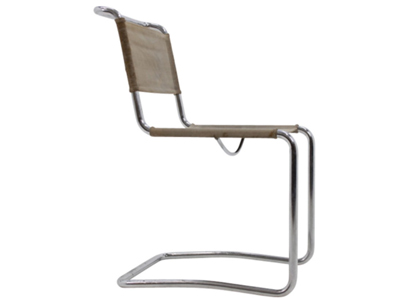

- Furniture and Metal Frame Manufacturing
- Railway Component Manufacturing
- General Engineering and Fabrication
Frequently Asked Question(FAQs)
A CNC Pipe Bending Machine is a machine that uses a computer to precisely bend pipes according to a defined pattern, angles and dimensions.
The CNC pipe bending machine offers superior precision, accuracy, consistency of bends, faster production rates, reduced labor and ability to bend complex pipe forms and shapes.
It is possible to bend pipe made of a variety of materials, including mild steel, stainless steel, aluminum and copper and others, depending on the machine configuration and required tooling.
Some of the principal industries making use of CNC pipe bending equipment include the vehicle, structure, pipeline, plumbing, engineering, railway line and manufacturing section, just to name a couple of.
Yes, based upon your pipe diameter, wall strength, bend radii and quantity, you can select CNC pipeline bending equipments with customized device arrangements as well as appropriate tooling.
